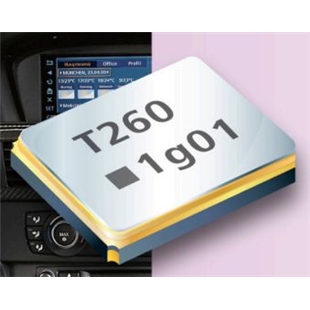

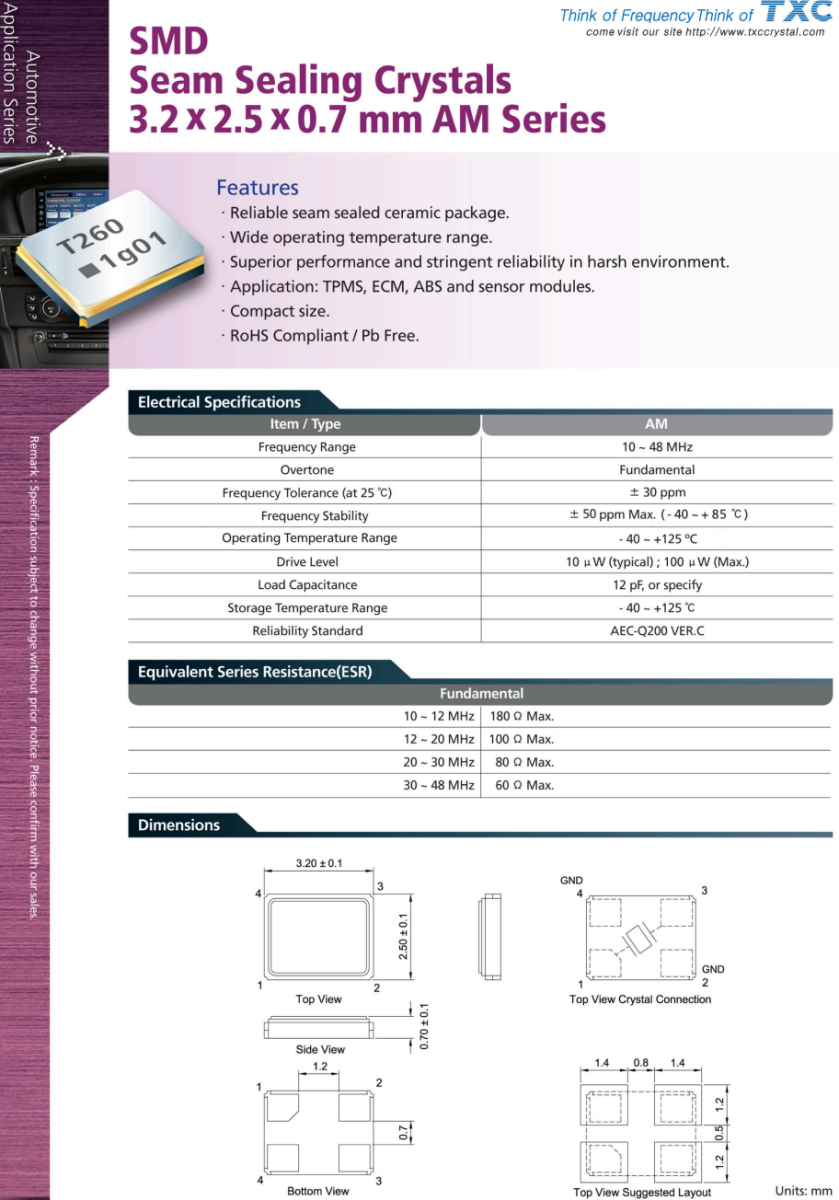

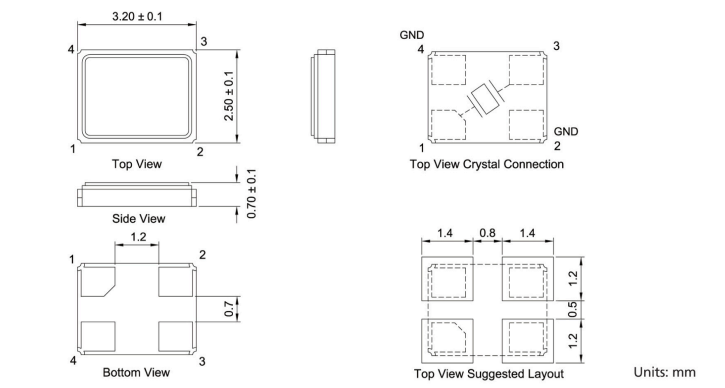

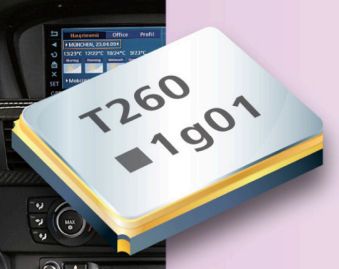

AM-48.000MAGE-T晶振,臺灣晶技晶振,汽車藍牙模塊晶振，臺灣TXC晶振,AM-48.000MAGE-T晶振,3225晶振，寬溫，汽車級晶振，無源晶振,無源晶振,石英晶體諧振器,四腳貼片晶振,超小型晶振,小型汽車晶振,車載收音機晶振,實時時鐘晶振,藍牙模塊晶振.特點可靠的縫密封陶瓷封裝。.工作溫度范圍寬。惡劣環境下的卓越性能和嚴格的可靠性應用領域: TPMS,ECM,ABS和傳感器模塊。體積小巧。符合RoHS標準/不含Pb。AM系列貼片，接縫密封晶體，3.2 x2.5 x0.7毫米

AM-48.000MAGE-T晶振,臺灣晶技晶振,汽車藍牙模塊晶振

AM-48.000MAGE-T晶振,臺灣晶技晶振,汽車藍牙模塊晶振

TXC原廠編碼	生產商品牌	Series	頻率	頻率穩定度	頻率容差	負載電容
AM-12.000MAGE-T	TXC晶振	AM	12MHz	±50ppm	±30ppm	12pF
AM-48.000MAGE-T	TXC晶振	AM	48MHz	±50ppm	±30ppm	12pF
AM-16.000MAGE-T	TXC晶振	AM	16MHz	±50ppm	±30ppm	12pF
AM-16.9344MAGV-T	TXC晶振	AM	16.9344MHz	±50ppm	±30ppm	8pF
AM-16.000MALE-T	TXC晶振	AM	16MHz	±150ppm	±30ppm	12pF
AM-28.224MAGQ-T	TXC晶振	AM	28.224MHz	±50ppm	±30ppm	10pF
AM16070006	TXC晶振	AM	16MHz	-	-	10pF
AM-40.000MANE-T	TXC晶振	AM	40MHz	±50ppm	±30ppm	12pF
AM-40.000MENE-T	TXC晶振	AM	40MHz	±50ppm	±10ppm	12pF
AM-16.000MANQ-T	TXC晶振	AM	16MHz	±50ppm	±30ppm	10pF
AM-24.305MAHY-T	TXC晶振	AM	24.305MHz	±30ppm	±30ppm	7pF
AM-20.000MANE-T	TXC晶振	AM	20MHz	±50ppm	±30ppm	12pF
AM-24.000MAGV-T	TXC晶振	AM	24MHz	±50ppm	±30ppm	8pF
AM-24.000MAGE-T	TXC晶振	AM	24MHz	±50ppm	±30ppm	12pF
AM-24.576MAGE-T	TXC晶振	AM	24.576MHz	±50ppm	±30ppm	12pF
AM-11.2896MAGQ-T	TXC晶振	AM	11.2896MHz	±50ppm	±30ppm	10pF
AM-14.31818MAGQ-T	TXC晶振	AM	14.31818MHz	±50ppm	±30ppm	10pF
AM-40.000MAGE-T	TXC晶振	AM	40MHz	±50ppm	±30ppm	12pF
AM-18.432MAGQ-T	TXC晶振	AM	18.432MHz	±50ppm	±30ppm	10pF
AM-20.000MAGE-T	TXC晶振	AM	20MHz	±50ppm	±30ppm	12pF
AM-18.080MALV-T	TXC晶振	AM	18.08MHz	±150ppm	±30ppm	8pF
AM-26.000MAGE-T	TXC晶振	AM	26MHz	±50ppm	±30ppm	12pF
AM-27.000MAGE-T	TXC晶振	AM	27MHz	±50ppm	±30ppm	12pF
AM-13.560MAGE-T	TXC晶振	AM	13.56MHz	±50ppm	±30ppm	12pF
AM-28.63636MAGK-T	TXC晶振	AM	28.63636MHz	±50ppm	±30ppm	20pF
AM-33.333MAGV-T	TXC晶振	AM	33.333MHz	±50ppm	±30ppm	8pF
AM-12.000MAHE-T	TXC晶振	AM	12MHz	±30ppm	±30ppm	12pF
AM-12.000MEIE-T	TXC晶振	AM	12MHz	±20ppm	±10ppm	12pF
AM-13.000MEHQ-T	TXC晶振	AM	13MHz	±30ppm	±10ppm	10pF
AM-13.560MDHE-T	TXC晶振	AM	13.56MHz	±30ppm	±20ppm	12pF
AM-13.560MENQ-T	TXC晶振	AM	13.56MHz	±50ppm	±10ppm	10pF
AM-16.000MAME-T	TXC晶振	AM	16MHz	±100ppm	±30ppm	12pF
AM-16.000MAPY-T	TXC晶振	AM	16MHz	±50ppm	±30ppm	7pF
AM-16.000MDQC-T	TXC晶振	AM	16MHz	±30ppm	±20ppm	9pF
AM-16.000MEIC-T	TXC晶振	AM	16MHz	±20ppm	±10ppm	9pF
AM-16.000MEPV-T	TXC晶振	AM	16MHz	±50ppm	±10ppm	8pF
AM-16.9344MAHV-T	TXC晶振	AM	16.9344MHz	±30ppm	±30ppm	8pF
AM-18.080MEMV-T	TXC晶振	AM	18.08MHz	±100ppm	±10ppm	8pF
AM-24.000MAGJ-T	TXC晶振	AM	24MHz	±50ppm	±30ppm	18pF
AM-24.5454MAHK-T	TXC晶振	AM	24.5454MHz	±30ppm	±30ppm	20pF
AM-24.5454MAQE-T	TXC晶振	AM	24.5454MHz	±30ppm	±30ppm	12pF
AM-24.5454MAQQ-T	TXC晶振	AM	24.5454MHz	±30ppm	±30ppm	10pF
AM-24.576MAHE-T	TXC晶振	AM	24.576MHz	±30ppm	±30ppm	12pF
AM-25.000MEIV-T	TXC晶振	AM	25MHz	±20ppm	±10ppm	8pF
AM-25.000MEPQ-T	TXC晶振	AM	25MHz	±50ppm	±10ppm	10pF
AM-25.000MFIQ-T	TXC晶振	AM	25MHz	±20ppm	±15ppm	10pF
AM-26.000MDIE-T	TXC晶振	AM	26MHz	±20ppm	±20ppm	12pF
AM-26.000MEIQ-T	TXC晶振	AM	26MHz	±20ppm	±10ppm	10pF
AM-26.000MEIV-T	TXC晶振	AM	26MHz	±20ppm	±10ppm	8pF
AM-26.000MENV-T	TXC晶振	AM	26MHz	±50ppm	±10ppm	8pF
AM-27.000MAQE-T	TXC晶振	AM	27MHz	±30ppm	±30ppm	10pF
AM-27.000MEPV-T	TXC晶振	AM	27MHz	±50ppm	±10ppm	8pF
AM-28.224MDGQ-T	TXC晶振	AM	28.224MHz	±50ppm	±20ppm	10pF
AM-28.6363MBPH-T	TXC晶振	AM	28.6363MHz	±50ppm	±50ppm	15pF
AM-40.000MDGE-T	TXC晶振	AM	40MHz	±50ppm	±20ppm	12pF
AM-48.000MAGV-T	TXC晶振	AM	48MHz	±50ppm	±30ppm	8pF
AM-48.000MBFQ-T	TXC晶振	AM	48MHz	±100ppm	±50ppm	10pF
AM-16.000MAHE-T	TXC晶振	AM	16MHz	±30ppm	±30ppm	12pF
AM-16.000MDNE-T	TXC晶振	AM	16MHz	±50ppm	±30ppm	12pF
AM-20.000MALI-T	TXC晶振	AM	20MHz	±150ppm	±30ppm	16pF
AM-20.000MAPE-T	TXC晶振	AM	20MHz	±50ppm	±30ppm	12pF
AM-22.5792MALI-T	TXC晶振	AM	22.579MHz	±150ppm	±30ppm	16pF
AM-25.000MALI-T	TXC晶振	AM	25MHz	±150ppm	±30ppm	16pF
AM-25.000MFNI-T	TXC晶振	AM	25MHz	±50ppm	±30ppm	16pF
AM-30.000MAGE-T	TXC晶振	AM	30MHz	±50ppm	±30ppm	12pF
AM27070601	TXC晶振	AM	27MHz	±30ppm	±20ppm	12pF
